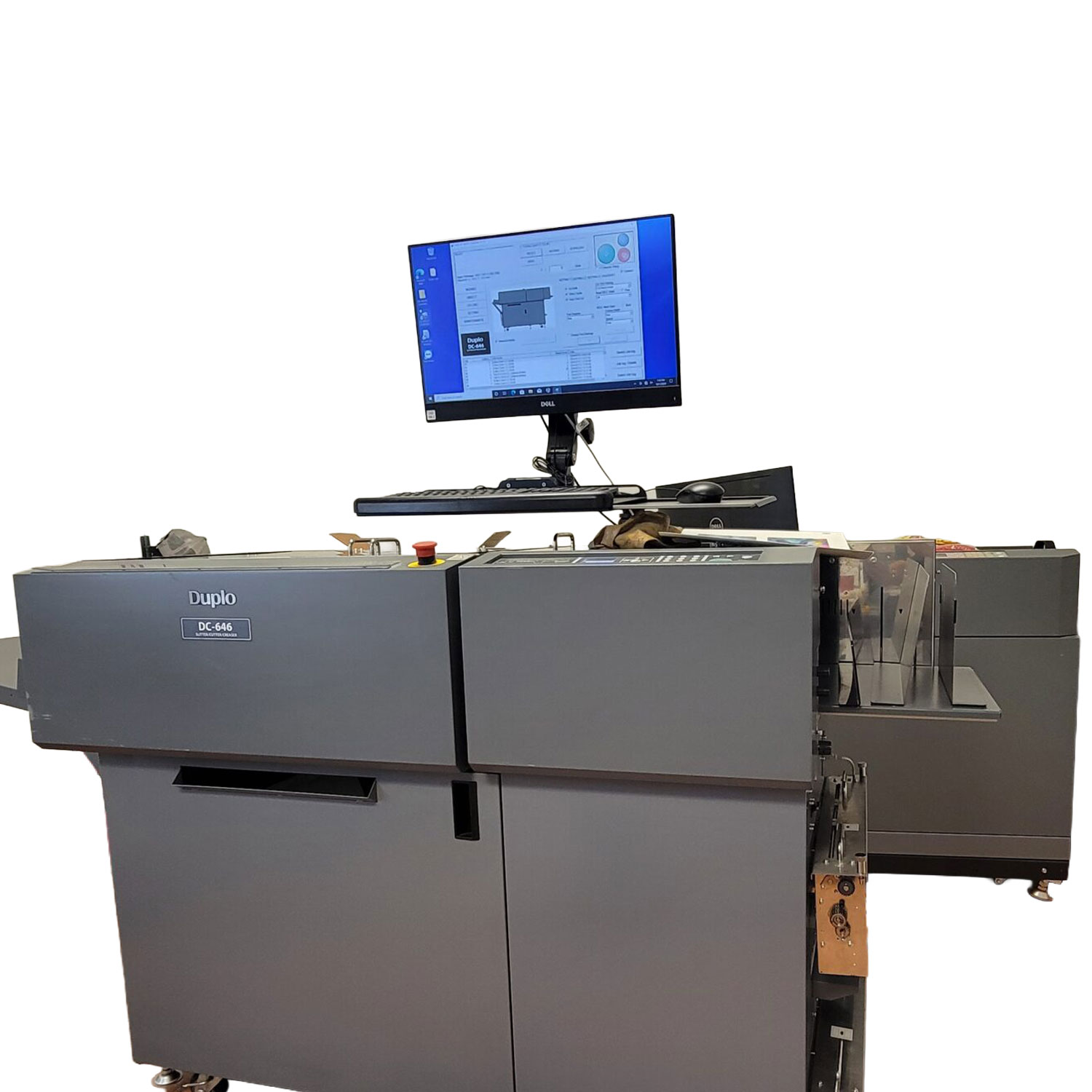

Used Duplo DC-646 Slitter Cutter Creaser with CPM Module
Introducing a Premium Duplo DC-646 Slitter Cutter Creaser
This meticulously maintained Duplo DC-646 is ready to elevate your production. Equipped with the sought-after CPM Perf Module, this machine is a versatile powerhouse.
Key Features:
- Exceptional Condition: Low meter reading and perfect working order.
- Comprehensive Warranty: 180-day/180000 click warranty on parts and labor for local deliveries and installations.
- Enhanced Functionality: Optional CPM Perf Module included.
Don’t miss out on this opportunity! Contact us today to learn more and secure this exceptional equipment.
Please review some specifications below, and send us a message with any questions or comments!
The fully automated DC-646 Slitter/Cutter/Creaser is Duplo’s mid-range, precision finisher. With its ability to slit/cut/crease, perforate, and fold in one pass, the DC-646 delivers professionally-finished applications up to 30 sheets per minute.
Eliminate touchpoints and increase productivity. Finish digital print jobs in faster turnarounds. Ideal for short to mid-production runs, the DC-646 produces a variety of applications such as 24-up business cards, postcards, coupons and tickets, book covers, and much more. Bring precision finishing in-house!
- Speed: Up to 30 sheets per minute (8.5” x 11” 2 cuts, 1 crease and CCD scanner off)
- Input Paper Size: 8.26” x 8.26” to 14.56” x 26.37” (210 mm x 210 mm to 370 mm x 670 mm)
- Min. Finished Size: 1.89” x 1.97” (48 mm x 50 mm)
- Tolerance: +/-0.2 mm
- Feeder Capacity: 3.9” (100 mm)
- Paper Weight: 110-350 gsm
- Slits Up to 8 per sheet
- 6 standard slitter tools with 2 margin slitters and 4 center slitters.
- An optional slitter module with a set of 2 slitters can be added.
- Cuts Up to 25 per sheet
- Creases Up to 20 per sheet
- Memory 250 jobs using the control panel
- Standard Features
- Air knife
- side air kit
- card stacker
- fan registration
- automatic gutter slit deflectors
- crease depth adjustment
- ultrasonic double feed detection sensor
- feed skew adjustment
- batch separation
- waste box
- emergency stop switch
- on-the-fly rejection
- CCD scanner
- PC Controller software
- PC pole mount
- long paper tray
- LCD control panel
- Options
- PC and PC Arm, 48” long conveyor stacker, and Integrated Folding System (IFS)
- RTM-02 Rotary Tool Module includes 2 each of perforation, micro-perforation, scoring, and slit-scoring tools. Up to 2 RTM-02s can be installed in the unit at one time, replacing slitter modules.
- CPM-02 Cross Perforation Module includes 1 each of perforation, micro-perforation, and slit-scoring tools.
- OSM-02 Slitter Module includes 2 sets of slitter heads.
- The OPK-02 PCB kit must be installed when using any of the optional modules but only one kit is needed to use multiple modules.
- Power Requirements 115V: 4.0A, 60Hz
- Dimensions (W x D x H) 91” x 40” x 44” (2,311 mm x 1,016 mm x 1,118 mm)
- Net Weight 617 lb. (280 kg)
Duplo DC-646 FAQs
The MSRP of the new DC-646 used to be USD $48,000. A used can go for as much as $40,000 due to this machines excellent reputation as fast and reliable. We have a special on professionally refurbished Duplo DC-646 for just $25,000!
The Duplo DC-646 is designed for media up to 400gsm. In sizes from 8.26”x8.26”up to 14.56”x26.37”
The Duplo DC-646 can produce a great variety of applications, such as 24-up business cards, postcards, coupons, tickets, book covers and more!
The production speed on the DC-646 is Up to 30 sheets per minute (8.5” x 11” 2 cuts, 1 crease and CCD scanner off)
Yes! We have multiple videos of this specific machine at work. Click Here to see this machine’s videos
The size jobs vary from 1.89”x1.97” up to 14.56”x26.37”
The training can take place in 1 business day, with continuous support upon request.
Cleaning and preventive maintenance is recommended every quarter, or depending on usage.
Note: The Duplo DC-646 must be kept with the power on. The transport rollers will rotate every certain period of time, in order to keep the cylindrical shape of the rollers intact.
We at The Copier source Inc, provide a 180 day warranty on our remanufactured equipment.
The response time is 1 business day for events, and 4 business hours, if the equipment is not functioning
The recommended space for installation is 104.5 inches X by 128 inches wide.
While some rival finishers excel with heavy-duty creasing matrices or tighter compact footprints, this system stands out for its superior barcode-driven automation, high-volume speed, and deeply established technician support network.
